Electric Golf Cart

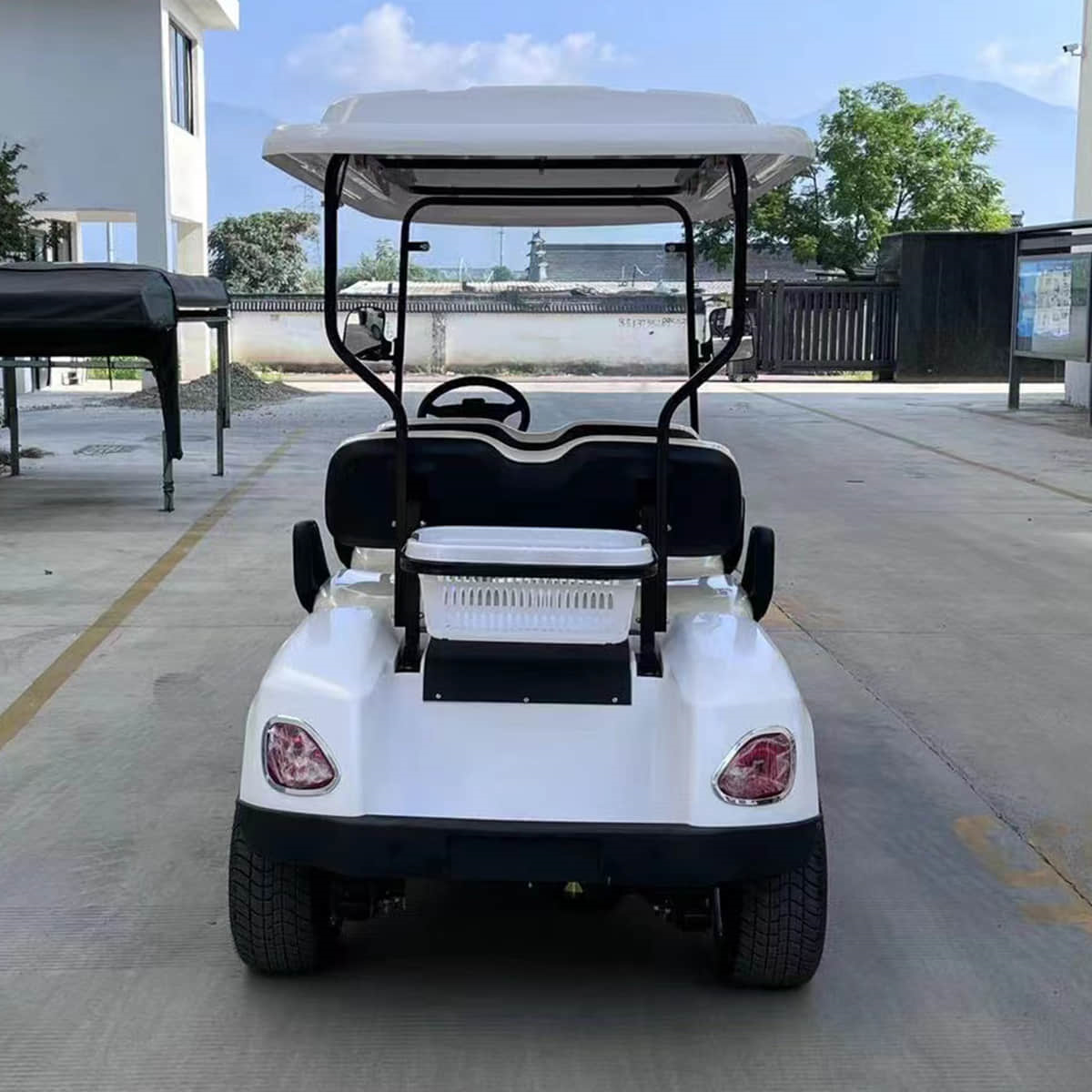

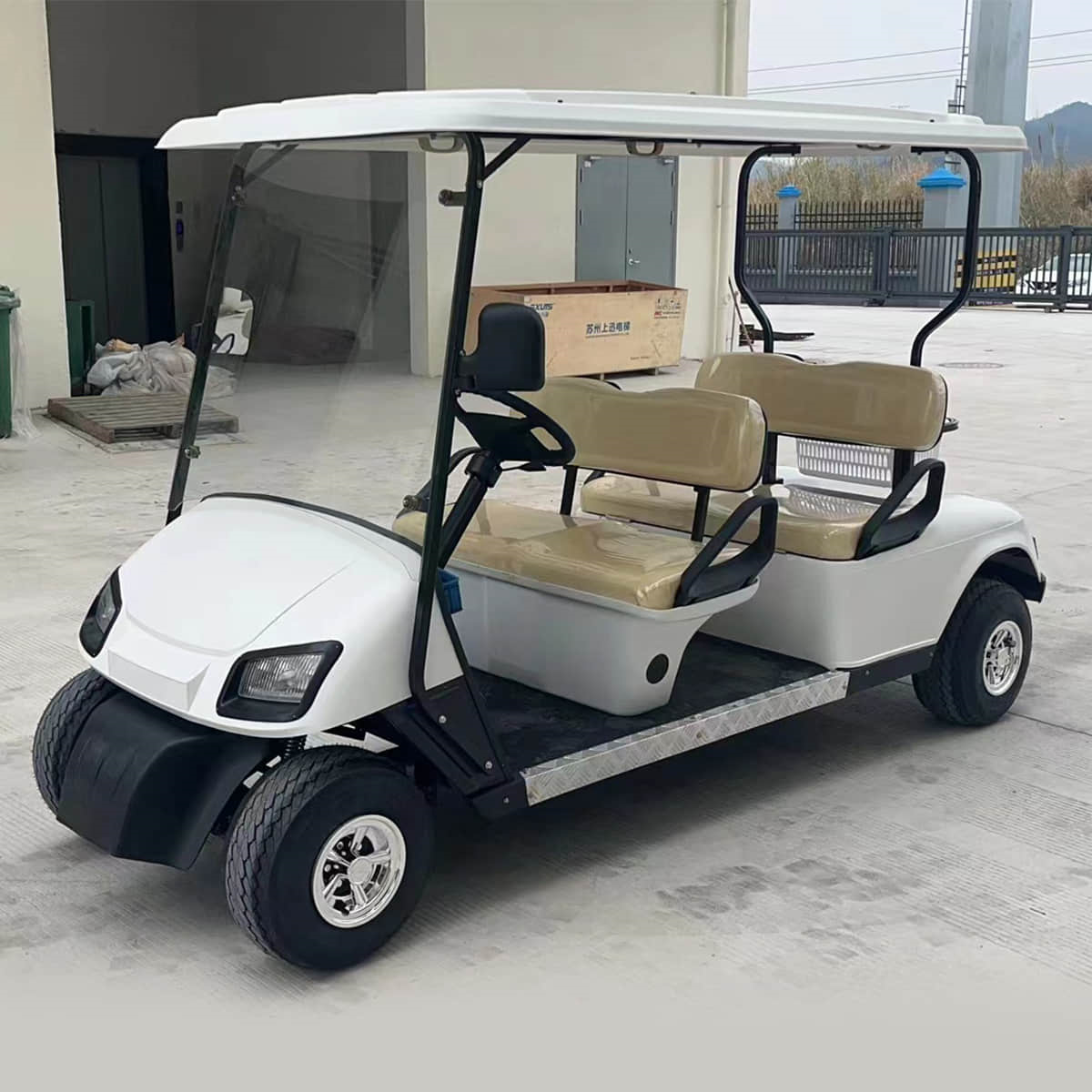

4 Seater Electric Golf Cart

The golf cart has a small size, convenient parking, and is powered by electricity with four wheels, which is energy-saving, environmentally friendly, comfortable to ride, and noiseless. Traveling through places such as hotels and schools is also the best choice.

Contact

Share:

Specifications

Model		ZLD-GF0504
Dynamical system	Control	Intelligent Electronic Control
	Battery	48 V-150 AH Lead-acid maintenance free battery
	Motor	4 KW high-efficiency AC motor
	Charge	On-board intelligent battery charger
	Charge time	6--8 H
Technical parameter	Charging input voltage	220 V/110 V
	Long * wide * high	310012501850mm	Braking Distance	≤3 m
	Curb weight	420 kg	Passenger	4
	Load	550 kg	Maximum Speed	25-30 km/h
	Front and rear wheel distance	855/955 mm	Maximum Climbing	25%
	Wheel base	2450 mm	Minimum turning radius	3.5 m
	Ground Clearance	136 mm	Range（flat road）	90-100 KM

Production

Feature

Light luxury texture

The appearance is small and cute, flexible and versatile, with sharp headlights and sharp edges, revealing the overall dominance of the vehicle. The lines are straight and elegant, with a light and luxurious texture inherent.

Powerful

The permanent magnet synchronous electric drive system has low electrical loss, high power density, better vehicle handling performance, stronger power, and longer driving range.

Comfort

Independent suspension and shock absorption system, designed with a sedan steering system, reduces changes in toe positioning, disperses force with dual springs, reduces vibration, and significantly improves ride comfort.

Customized

Golf carts can be customized according to customer needs, with colors that fit their usage scenarios, offering everything from youth, sports, and fashion.

Aluminum alloy body

The overall body structure adopts an all aluminum alloy body. The introduction of imported rear axle technology has significantly enhanced tuning, enhanced shock absorption ability, and improved driving experience.

Smart

Designing multiple operating modes through a computer is more considerate, with electric brakes and automatic reverse charging functions. Multifunctional pedal, integrating acceleration, braking and parking, simple operation.

Detail

Exterior car shell

It has the characteristics of anti-aging, UV resistance, strong hardness, and bright color after painting

Instrument panel:

Made of injection molding material, integrally molded, exquisitely crafted, equipped with a storage box and access hole. The instrument adopts advanced automotive LCD display instruments with complete functions

Seats

Adopting four way adjustable seats with front and rear backrest, suitable for drivers of different body shapes, improving driving comfort, alleviating driving fatigue, and ensuring driving safety

Battery

Excellent discharge performance with high current: high specific power, strong starting and climbing ability, and special alloy formula, which can meet the requirements of fast charging in a short time

Motor

It has the characteristics of high efficiency, energy-saving, stepless speed regulation, strong overload capacity, low maintenance cost, and high power density

Electric control

Adopting innovative "integrated core" technology, the product has significant advantages such as high efficiency and lightweight

Shock absorber

MacPherson independent suspension, with high load-bearing strength and good driving and riding comfort

Power assisted steering

Completely powered by an electric motor, with small size and convenient assembly, low energy loss, good return to normal, high efficiency, high reliability, and very lightweight

Rear axle

The integrated rear axle is adopted, with a rigid solid beam in the middle, which solidly connects the wheels on both sides, providing excellent performance and durability

Tires

Automotive grade radial tires with added drainage design for more stable driving on rainy days. Four wheel alignment is done at the factory, with good tracking performance during driving. Stable tire pressure in summer, less prone to tire blowout, etc

Wheel hub

Made of alloy wheels, beautiful and lightweight, reducing chassis weight and providing better handling

Charger

It adopts the anti-seismic technology of glue filling, adopts a sealed waterproof structure design, and has a protection level of IP66. Low electromagnetic interference. High reliability, low noise, and more guaranteed charging safety. Equipped with automatic power outage protection function during charging

Lighting

The entire vehicle adopts LED cold light source, which is energy-saving, environmentally friendly, efficient, small in size, and has a long lifespan of up to 50000 hours. The brightness of 1W LED is equivalent to that of 15W incandescent lamps

Gear position

Imitation of automotive grade high-end gear lever, made of injection molding material, with a smooth and high-end surface treated with chrome plating technology, which is not easy to rust. The forward, reverse, and neutral gears are clearly marked, and the operation is simple and driving is convenient

FAQs

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

A: T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages before you pay the balance.

A: EXW, FOB, CIF.CRF

A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. However, we will require minimum 500 units vehicles yearly for this project.

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

A: Yes, we have 100% test before delivery

A: 1.We keep good quality and competitive price to ensure our customers benefit .
2.We respect every customer as our friend and we sincerely do business and make friends with them.
